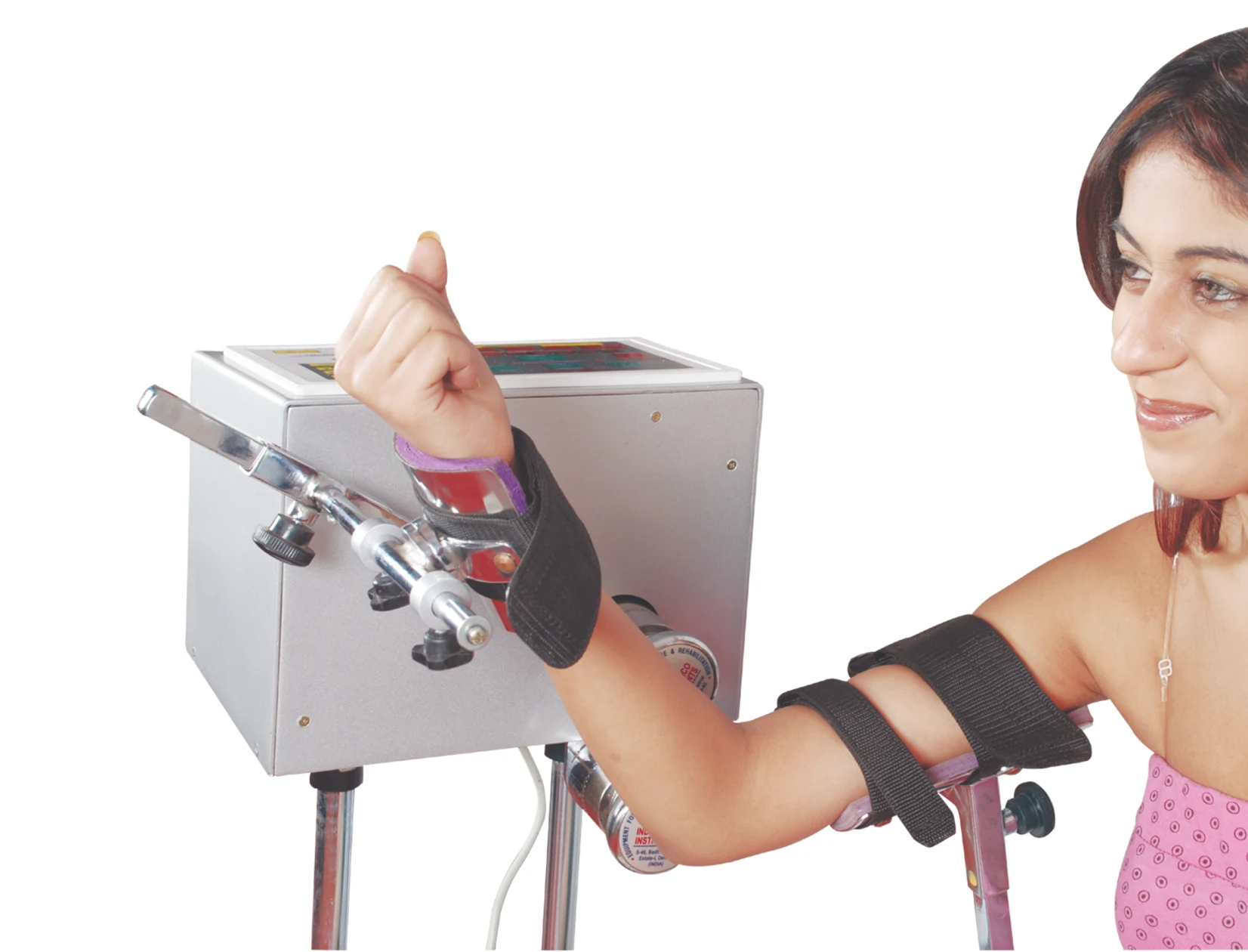

Continuous Passive Motion Unit (Elbow)

Elbow & Wrist CPM is a Micro-Computer controlled unit.  It represents the latest breakthrough in CPM technology. Solid state circuitry control panel with highly visual LED Digital readouts allows Flexion and Extension of Elbow joint through a prefixed Range of Motion and Time. Wrist rotation and Wrist roll movement can also be achieved. Unit Comes with necessary accessories for Elbow passive motions, Supination / Pronation & Wrist Roll.  Unit is fitted on a mobile Electrical Jack to adjust height according to patient requirement.

Product Specifications:

• Therapy Modes: SIX, Mobilization Modes for Continuous, Intermittent and Progressive passive movements.
• ROM Setting is Programmable from 00 to 120 deg for Elbow movements: -80 to + 80 for Wrist movements.
• Treatment Time is Programmable from 01 to 99 min.
• Speed is Adjustable in Four Steps, from 0.6 degree to 3.5 degree per second.
• Pause Time is Programmable Extension/Flexion Pauses from 00 to 99 seconds.
• 80 Pre-set treatment patterns are stored in memory.
• 20 programmes are Free to store your own patterns.
• Digital display of ROM settings Pause Time, Treatment Time, and Graphic display of Mobilization modes.
• Flexion or Extension starting position can be set according to the needs of the patient in Inching Switch.
• Height Adjustment has done Electrically, by Push button switches.
• Right or Left arm can be set & exercised by little adjustments.
• Patient can Stop/interrupt treatment with handheld switch.  It is provided for the safety of patient.
• Power Supply: 220-240 V AC at 50-60 Hz.
