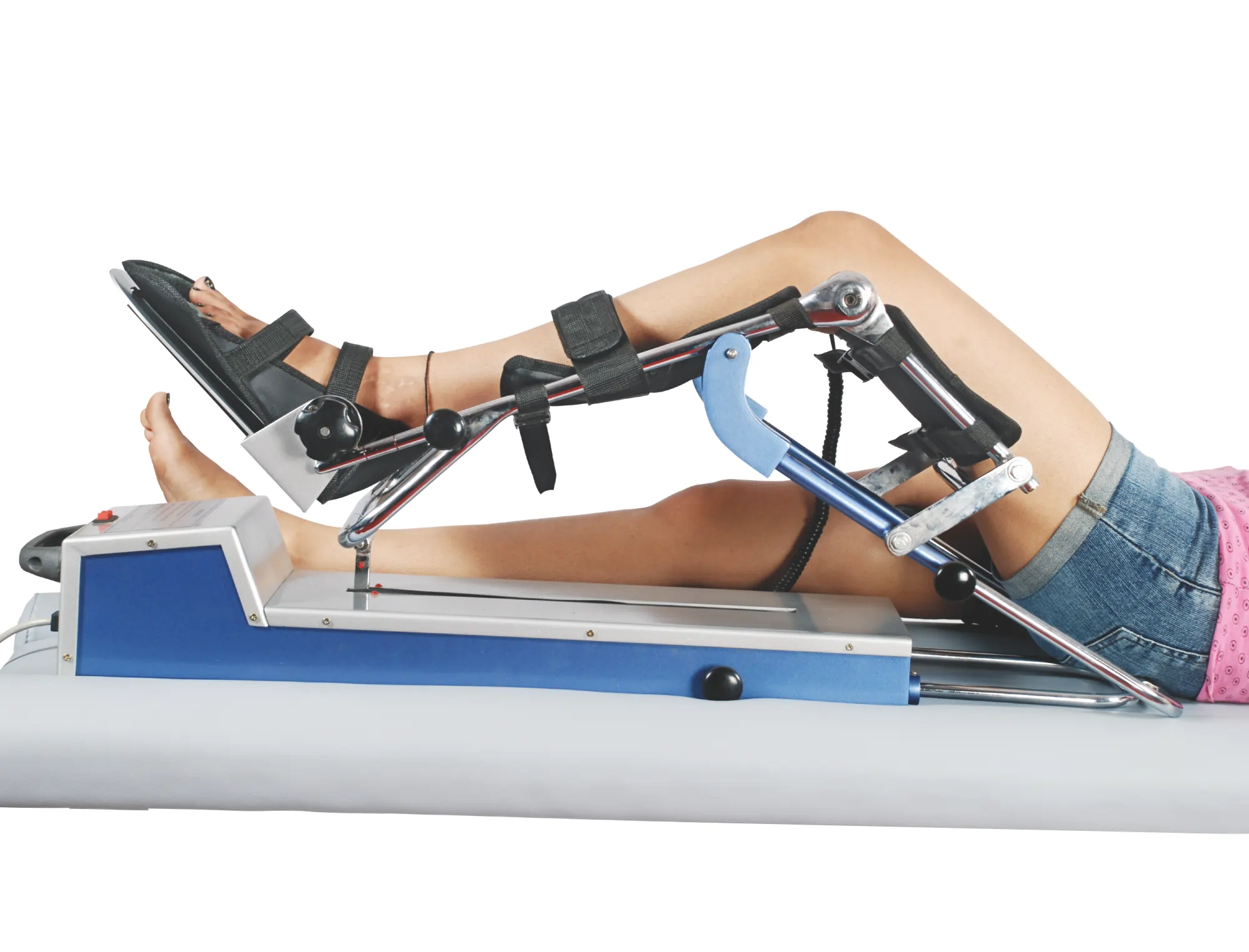

Continuous Passive Motion Unit (Knee)

Knee CPM is a micro-computer-controlled unit.  It represents the latest breakthrough in CPM Technology. The lightweight unit is constructed of Aluminium Sheet and is placed on a movable trolley.  Solid-state circuitry control panel with highly visual LED Digital readouts allows Flexion and Extension of the knee joint through a Prefixed Range of Motion and Time.  It gives a Proper fit of Calf and Thigh lengths. The Necessary limb support provides a comfortable surface for prolonged contact.  It is washable in cold water.

Product Specifications:

• Therapy Modes: SIX, Mobilization Modes for Continuous, Intermittent and Progressive passive movements.
• ROM Setting is Programmable from 00 to 120 deg.
• Pause Time is Programmable Extension/Flexion Pause from 00 to 99 seconds.
• Treatment Time is Programmable from 01 to 99 min.
• Speed is Adjustable in Four Steps.
• Starting angle can be set According to the needs of the patient by Inching Switch.
• 30 Treatment Protocols can be Programmed & stored in memory.
• Digital display of ROM settings Pause Time, Treatment Time, and Graphic display of Mobilization modes.
• Patient can Stop/interrupt treatment with handheld switch.  It is provided for the safety of patient.
• Trolley has provided for Transportation & storage.
• Power Supply: 220-240 V AC at 50Hz.
