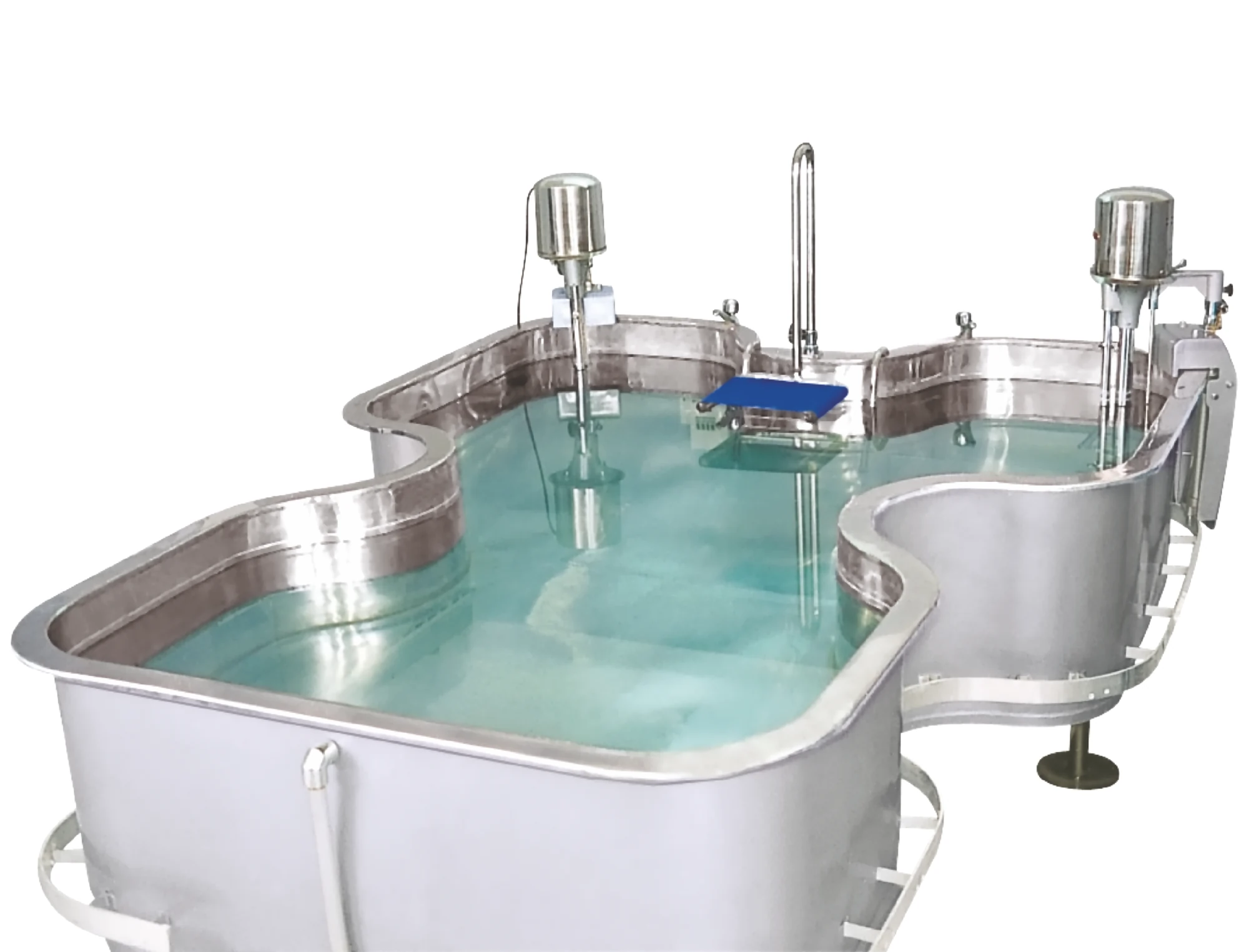

Hydrotherapy Tank - Figure of 8

The  "Hydrotherapy Tank - Figure of 8" is best for Aquatic Therapy. In Hydrotherapy, Cold and Hot water is used for pain relief and treating illness.  Hydrotherapy, water therapy is an important tool in physical therapy.  This tank is designed for permanent installations with direct connections to Hot & Cold-water supply, Overflow, and Drainage.  The shape & dimensions of the tank allow various arm & leg exercises to be carried out without hitting the sides.

Product Specifications:

• This Tank is constructed of heavy stainless-steel sheet (2mm & 1.5mm thick), electrically Argon welded tank is shaped to "Figure of 8".
• Overall dimension is 263cm x 196cm x 86cm high.
• Inside dimension is Length to inset 218cm, Width upper part 183cm, Width of middle narrow part 89cm, Width of lower part 135cm, Depth is 56cm.
• Two, Turbine Ejector-Aerator are powered by the vertically mounted 1/2 hp electric motor.
• For height adjustment, the unit is mounted on a spring-loaded turbine elevator.
• For easy movement of Turbines around the tank, TWO carriages fitted with ball bearings.
• The recessed areas at the Sides of the bath provide good access for the therapist when monitoring & assisting the patient.
• 220 V AC Power supply required for this unit.
• The following accessories are included in the unit: One Digital Thermometer, 2 Water Inlets, Drain and Overflow Pipes with all necessary fitting. Adjustable Stainless-Steel Headrest, Stainless Steel Body Stretcher and Sitting seat fitted with nylon cloth.
• Bright polish finish inside the tank with special paint finish from outside.

Note: A separate room or hall is required for this unit with a 220V AC power supply, Hot & Cold-water supply, and water drainage.
