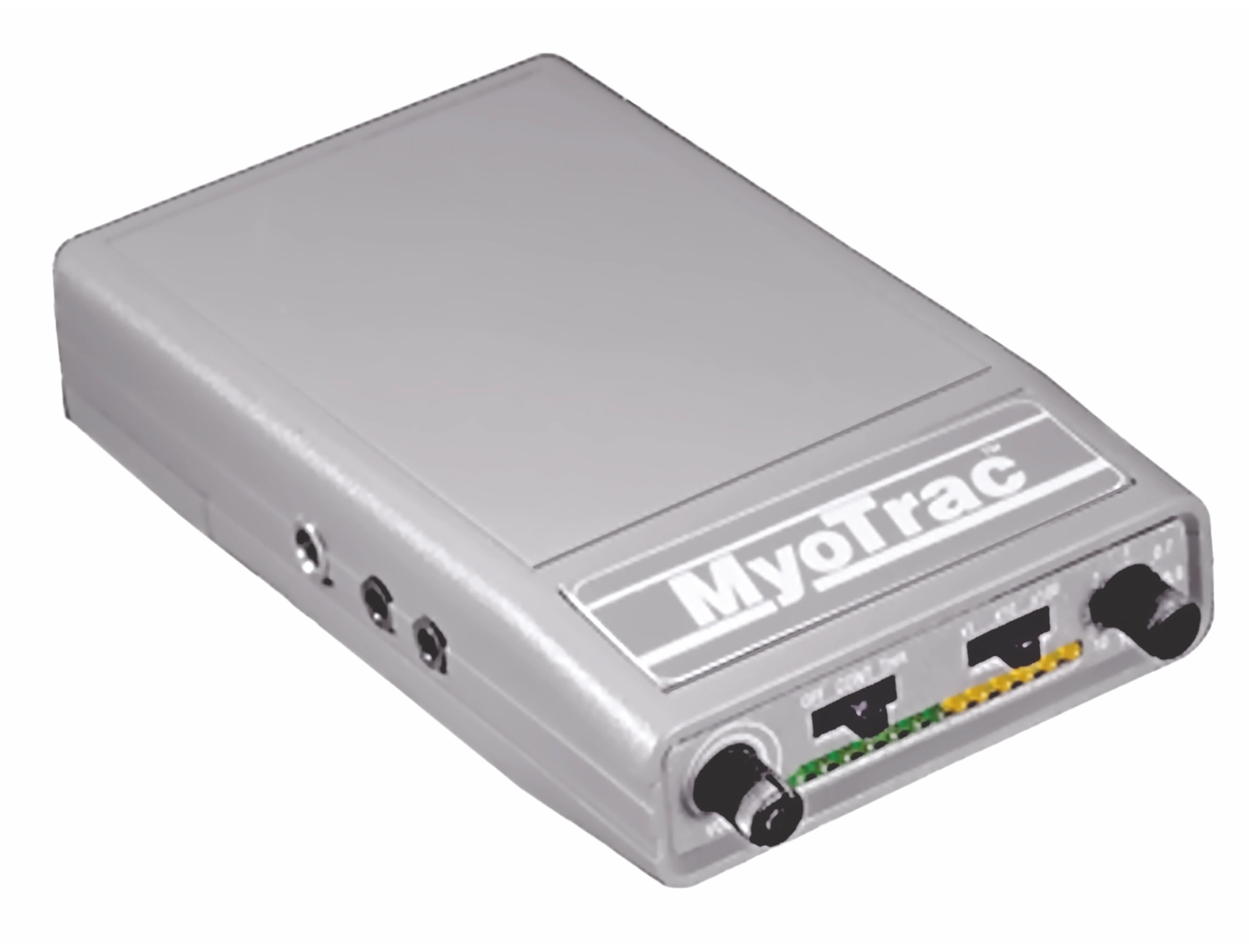

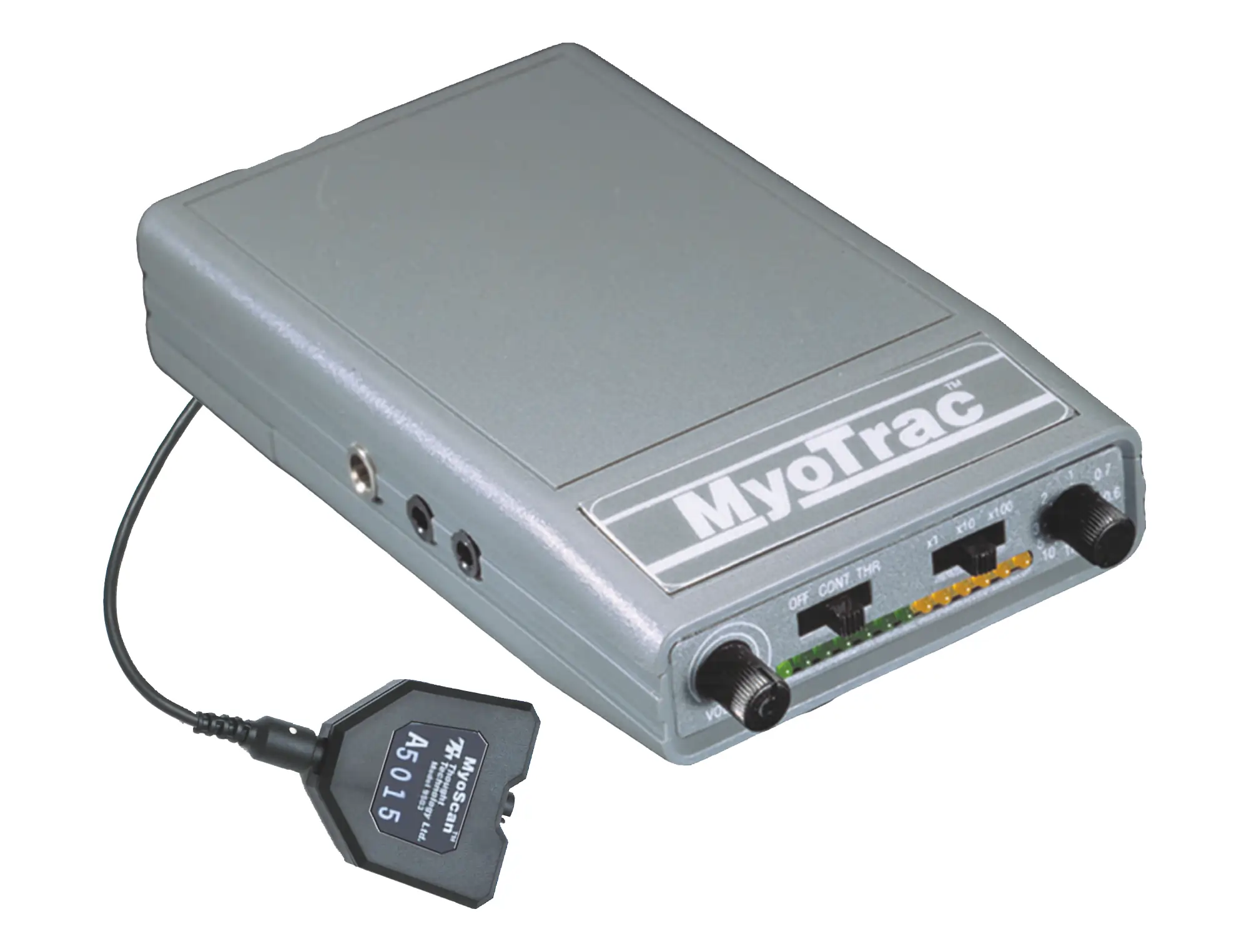

MyoTrac is a highly sensitive compact unit that is ideal for training in the clinic, home, or office. It allows total freedom of movement for ambulatory exercises and provides a bright light bar and proportional tone biofeedback. The unit is accurate and reliable.
Product Specifications:
MyoTrac is a highly sensitive compact unit that is ideal for training in the clinic, home, or office. It allows total freedom of movement for ambulatory exercises and provides a bright light bar and proportional tone biofeedback. The unit is accurate and reliable. MyoTrac™ offers three sensitivity ranges for muscle strengthening, rehabilitation, or relaxation therapy, and provides stable readings in less than a second.
Product Specifications:
| MyoTrac Hardware Specifications | |
| Size (approx.) | 61mm x 112mm x 25mm (2.4” x 4.4” x 1”) |
| Weight (approx.) | 73g (2.5oz) |
| Input Impedance | 1,000,000M in parallel with 10pF |
| Signal Input Range x1 | 0 – 20V |
| Signal Input Range x10 | 0 – 200V |
| Signal Input Range x100 | 0 – 2000V |
| CMRR 20 – 500 Hz (approx.) | 130dB |
| CMRR @ 60 Hz (approx.) | 180dB |
| Channel Bandwidth (Wide) | 20Hz ±5Hz – 500Hz ±50Hz |
| Channel Bandwidth (Narrow) | 100Hz ±10Hz – 200Hz ±20Hz |
| Signal Output Range | 0V – 2V |
| Supply Voltage | 7.4V – 9.6V |
| Current Consumption | 10mA – 3mA /+5mA |
| Battery Life (Alkaline) | 40 Hours minimum |
| Low Battery Warning | 7.4V |
| Accuracy | ±5% and ±0.3mV |
